PRODUCT DRAWING| Specifications | |||
| Number of Pins: | 4 Pins | Key Position: | N Code |

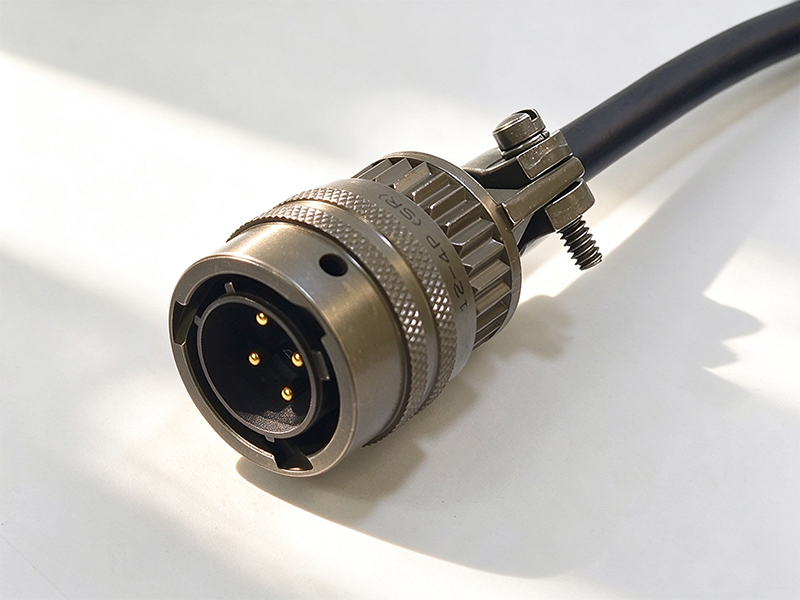

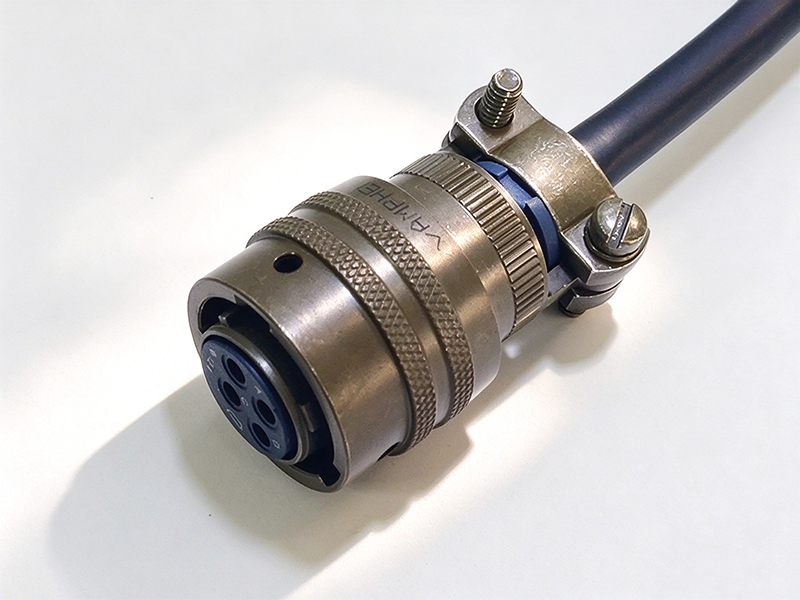

| Left Connector: | PT06A-12-4S(SR) | Right Connector: | PT06A-12-4P(SR) |
| AWG Gauge: | 16~20 AWG | Connection Type: | Bayonet or Screw Locking |
| Wires & Cables Length: | Customization length | ||
| Material | |||
| Housing & Insulation: | Neoprene | Contacts: | Copper Alloy, Gold Plating |
| Shell: | Aluminum, Chrome Plating | Sealing: | Polychloroprene |
| Shielding: | Shield | Overmolding: | - |
| Wires & Cables Conductor: | Tinned Copper | Wires & Cables Jacket: | PVC / PUR |
| Technical Characteristics | |||
| Rated Current: | 10A | Rated Voltage: | 600V |
| Rated Temperature: | -25°C ~ + 85°C | Flame Retardant Grade: | UL94V-0 |
| Insulation Resistance: | ≥ 100 MΩ | Contact Resistance: | ≤10mΩ |
| Durability: | ≥ 1000 Times | Protection Grade: | IP67 |
| Product Certification: | RoHS, REACH | Production Design Standards: | MIL-DTL-26482 |
