PRODUCT DRAWING| Specifications | |||
| Number of Pins: | 4 Pins | Key Position: | - |
| Left Connector: | DT06-4S | Right Connector: | - |
| AWG Gauge: | 12 AWG ~ 20 AWG | Connection Type: | Plug and unplug |
| Wires & Cables Length: | Customization length | ||
| Material | |||
| Housing & Insulation: | PA | Contacts: | Copper Alloy, Nickel / Gold-Plated |
| Shell: | - | Sealing: | Silicone |
| Shielding: | Shield | Overmolding: | TPU |
| Wires & Cables Conductor: | Tinned Copper | Wires & Cables Jacket: | TPU / XLPO |
| Technical Characteristics | |||
| Rated Current: | 16A | Rated Voltage: | 300V |
| Rated Temperature: | -40°C ~ + 125°C | Flame Retardant Grade: | VW-1 / UL94V-0 |
| Insulation Resistance: | ≥ 100 MΩ | Contact Resistance: | ≤10mΩ |
| Durability: | ≥ 1000 Times | Protection Grade: | IP67 |
| Product Certification: | RoHS, REACH | Production Design Standards: | IPC 620 |

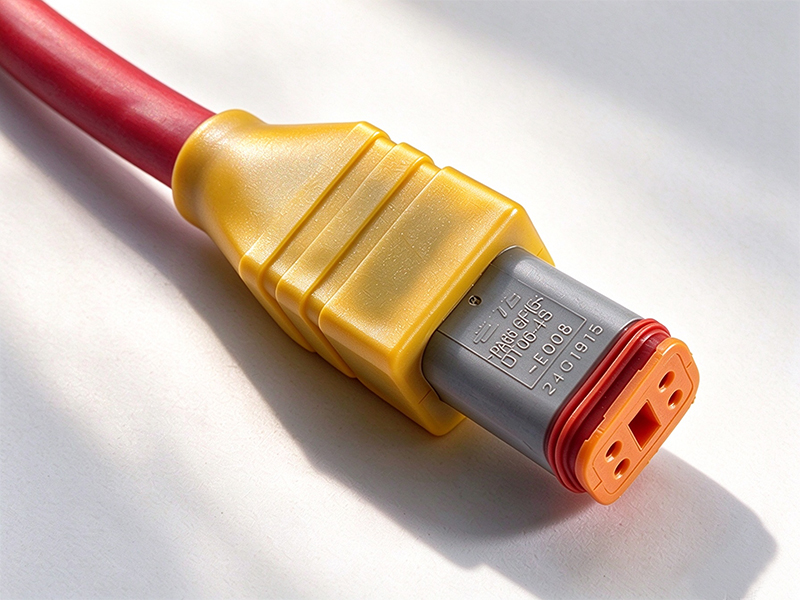

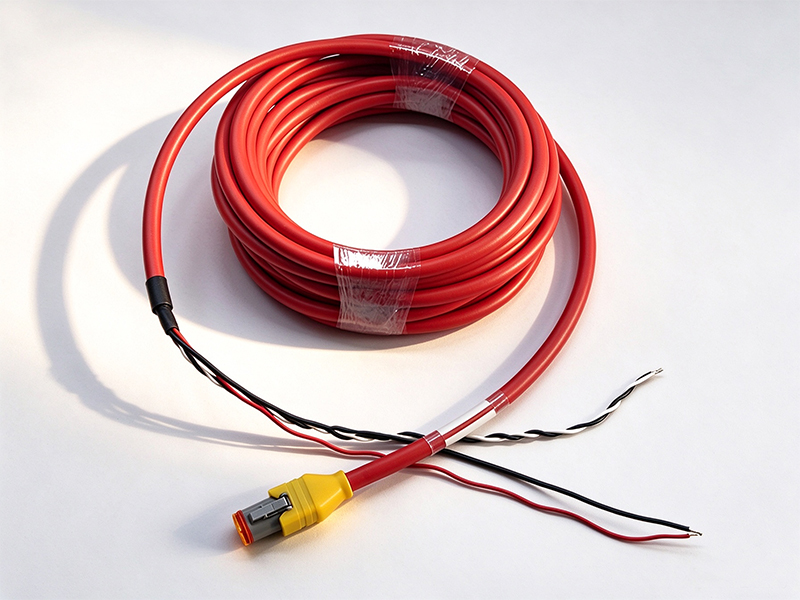

CUSTOMIZED CONNECTOR DT06-4S-E008 OVERMOLDING WATERPROOF CABLE PRE-ASSEMBLED
