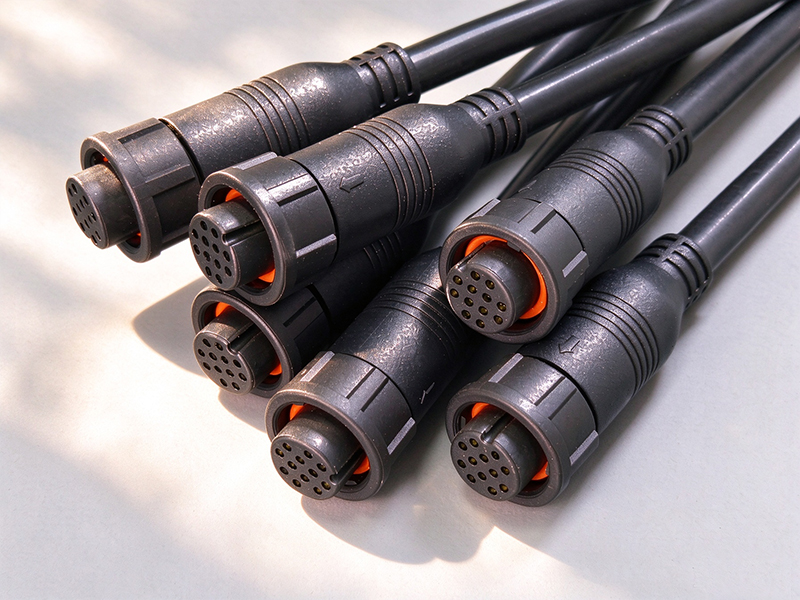

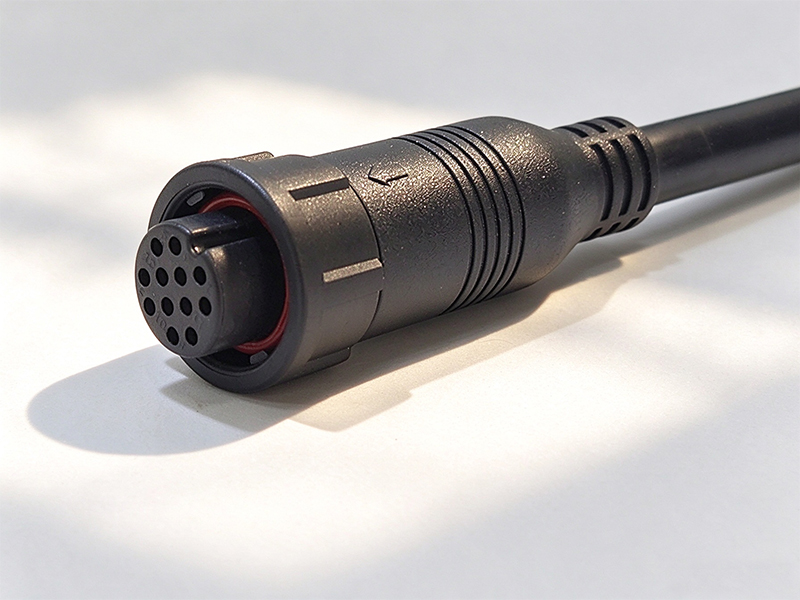

PRODUCT DRAWING| Specifications | |||
| Number of Pins: | 2~12 Pins | Key Position: | Standard Connecotr |
| Left Connector: | B Size Connector | Right Connector: | - |
| AWG Gauge: | 16 AWG ~ 26 AWG | Connection Type: | Bayonet or Screw Locking |
| Wires & Cables Length: | Customization length | ||
| Material | |||
| Housing & Insulation: | PA | Contacts: | Copper Alloy, Gold-Plated |
| Shell: | - | Sealing: | Silicone |
| Shielding: | - | Overmolding: | PVC / PUR |
| Wires & Cables Conductor: | Tinned Copper | Wires & Cables Jacket: | PVC / PUR |
| Technical Characteristics | |||
| Rated Current: | 5~10A | Rated Voltage: | 300V |
| Rated Temperature: | -40°C ~ + 105°C | Flame Retardant Grade: | VW-1 / UL94V-0 |
| Insulation Resistance: | ≥ 100 MΩ | Contact Resistance: | ≤10mΩ |
| Durability: | ≥ 500 Times | Protection Grade: | IP67 |
| Product Certification: | RoHS, REACH | Production Design Standards: | IPC 620 |
