PRODUCT DRAWING| Specifications | |||
| Number of Pins: | 3 Pins | Key Position: | N Code |

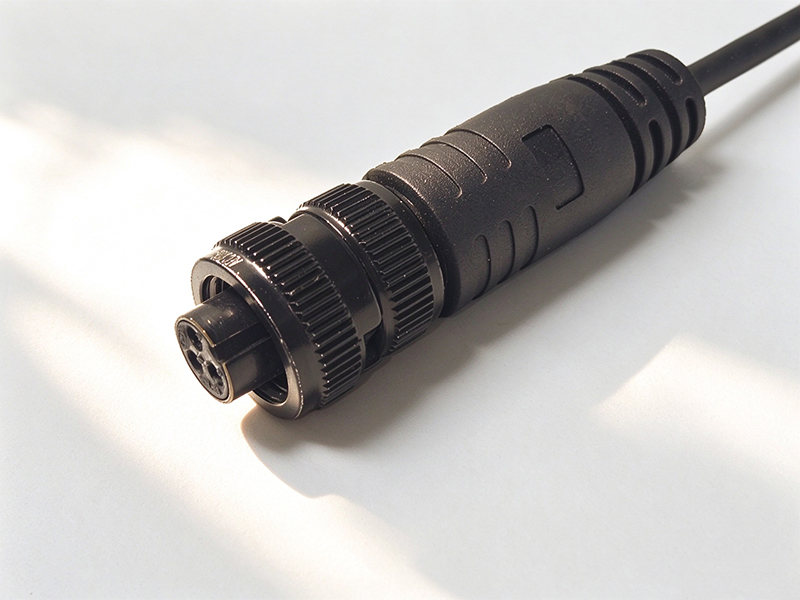

| Left Connector: | MS3106E10SL-3S | Right Connector: | - |
| AWG Gauge: | 18~20 AWG | Connection Type: | Bayonet or Screw Locking |
| Wires & Cables Length: | Customization length | ||
| Material | |||
| Housing & Insulation: | Neoprene | Contacts: | Copper Alloy, Gold Plating |
| Shell: | Aluminum, Chrome Plating | Sealing: | Neoprene |
| Shielding: | Shield | Overmolding: | PVC / TPU |
| Wires & Cables Conductor: | Tinned Copper | Wires & Cables Jacket: | PVC / TPU |
| Technical Characteristics | |||
| Rated Current: | 22A | Rated Voltage: | 600V |
| Rated Temperature: | - 55°C ~ + 125°C | Flame Retardant Grade: | UL94V-0 / VW-1 |
| Insulation Resistance: | ≥ 100 MΩ | Contact Resistance: | ≤ 10mΩ |
| Durability: | ≥ 1000 Times | Protection Grade: | IP67 |
| Product Certification: | RoHS, REACH | Production Design Standards: | IPC620 |
