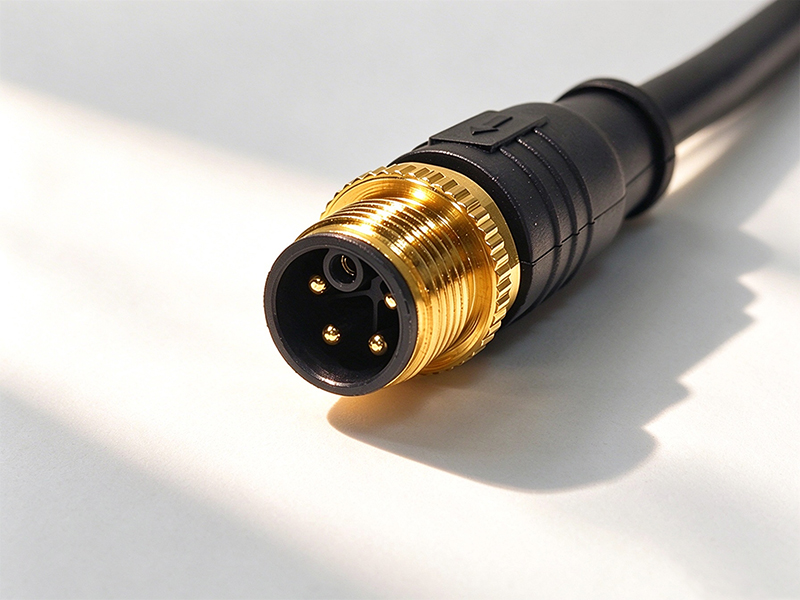

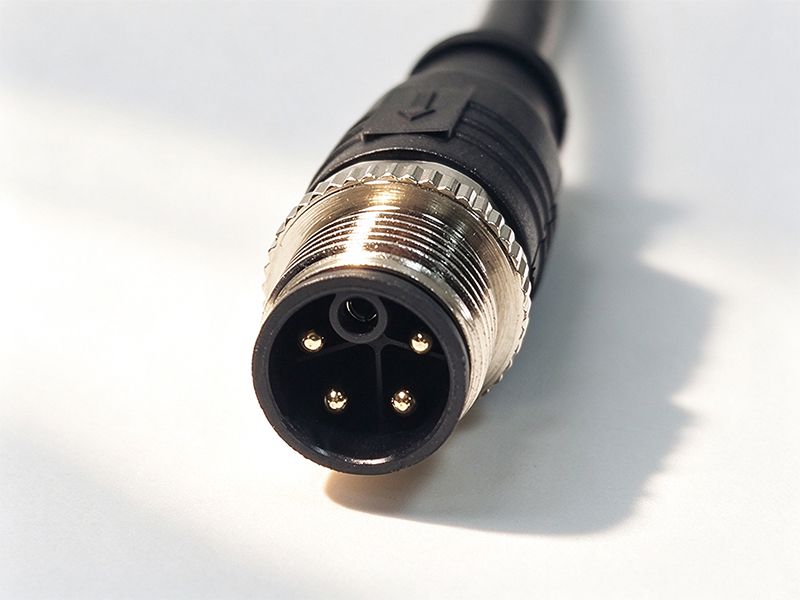

PRODUCT DRAWING| Specifications | |||
| Number of Pins: | 5 Pins (4+PE) | Key Position: | K Code |
| Left Connector: | M12 Plug | Right Connector: | - |
| AWG Gauge: | 14~20 AWG | Connection Type: | Screw Locking |
| Wires & Cables Length: | Customization length | ||
| Material | |||
| Housing & Insulation: | PA | Contacts: | Copper Alloy,Gold-Plated |
| Shell: | Copper Alloy, Nickel-Plated | Sealing: | NBR |
| Shielding: | - | Overmolding: | PVC / PUR |
| Wires & Cables Conductor: | Tinned Copper | Wires & Cables Jacket: | PVC / PUR |
| Technical Characteristics | |||
| Rated Current: | 12A | Rated Voltage: | 630V |
| Rated Temperature: | -40°C ~ + 105°C | Flame Retardant Grade: | VW-1 |
| Insulation Resistance: | ≥ 1000 MΩ | Contact Resistance: | ≤10mΩ |
| Durability: | ≥ 1000 Times | Protection Grade: | IP67 |
| Product Certification: | RoHS,REACH | Production Design Standards: | IEC61076-2-111 |
