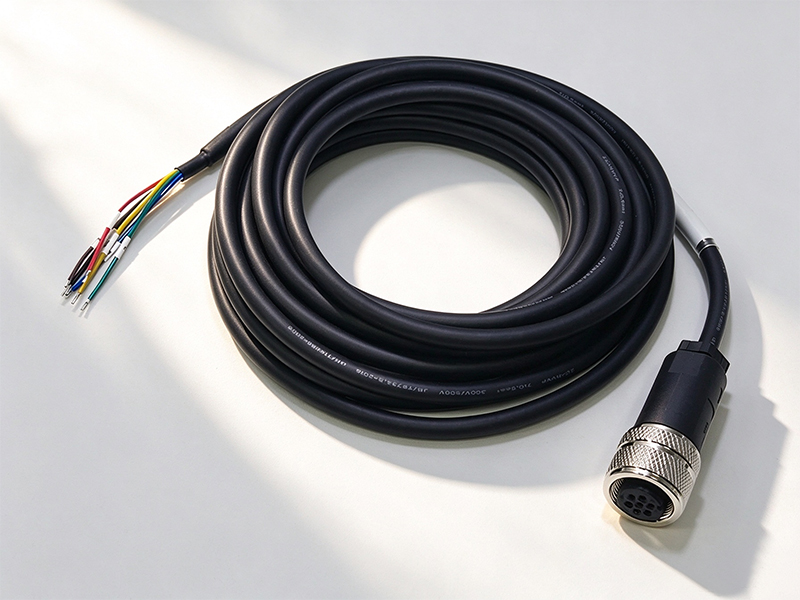

PRODUCT DRAWING| Specifications | |||
| Number of Pins: | 7 Pos (6+PE) | Key Position: | - |
| Left Connector: | Valve Socket | Right Connector: | - |
| AWG Gauge: | 0.5mm²~1.5mm² | Connection Type: | Screw Locking |
| Wires & Cables Length: | Customization length | ||
| Material | |||
| Housing & Insulation: | PA | Contacts: | Copper Alloy, Gold Plating |
| Shell: | Copper Alloy, Nickel-Plated | Sealing: | NBR |
| Shielding: | Shield | Overmolding: | - |
| Wires & Cables Conductor: | Tinned Copper | Wires & Cables Jacket: | PVC |
| Technical Characteristics | |||
| Rated Current: | 3A | Rated Voltage: | 24V |
| Rated Temperature: | -40°C ~ + 85°C | Flame Retardant Grade: | UL94V-0 / VW-1 |
| Insulation Resistance: | ≥ 1000 MΩ | Contact Resistance: | ≤10mΩ |
| Durability: | ≥ 1000 Times | Protection Grade: | IP67 |
| Product Certification: | RoHS, REACH | Production Design Standards: | IPC 620 |
