| Specifications | |||
| Number of Pins: | 8 Pins | Key Position: | - |

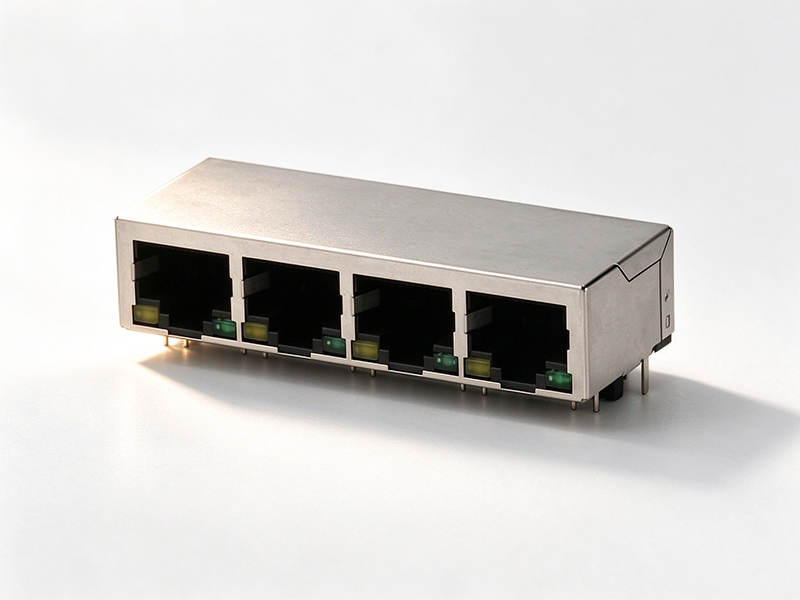

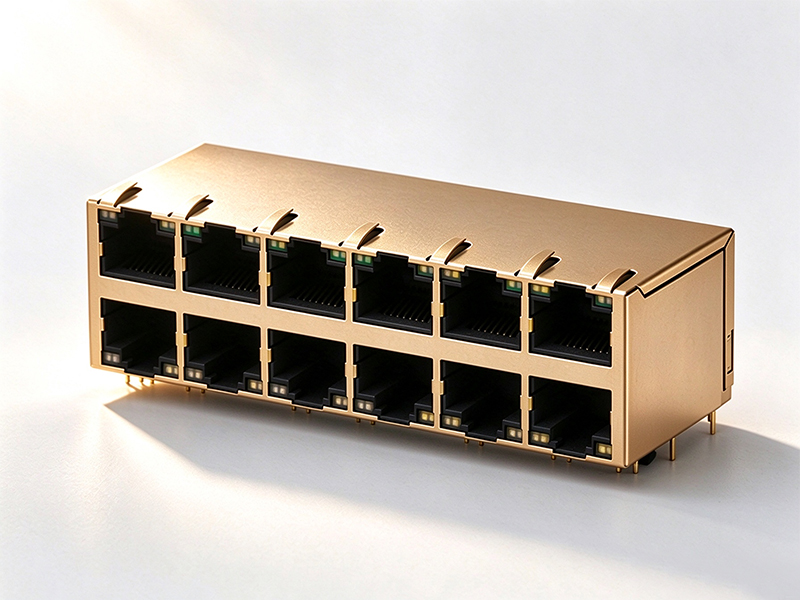

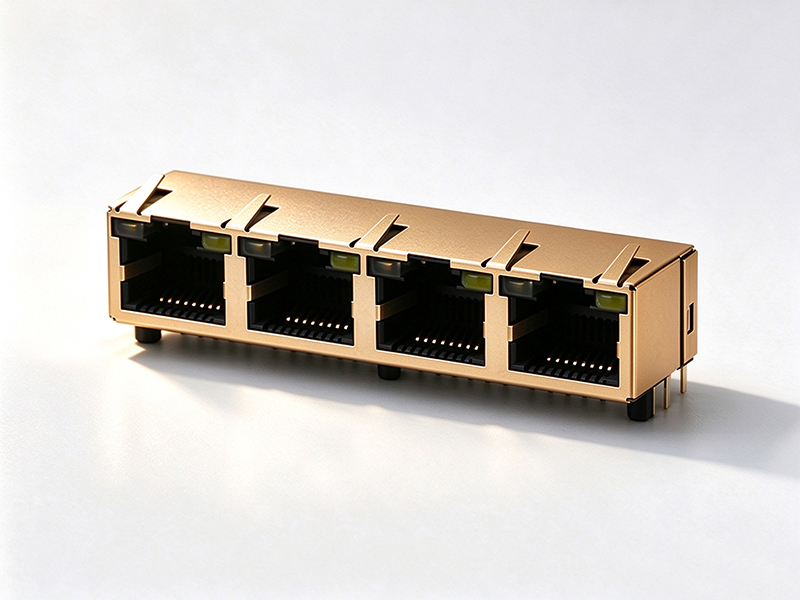

| Left Connector: | RJ45 Socket | Right Connector: | - |
| AWG Gauge: | - | Connection Type: | Plug and unplug |
| Wires & Cables Length: | - | ||
| Material | |||
| Housing & Insulation: | PBT / LCP | Contacts: | Copper Alloy, Gold-Plated |
| Shell: | Copper Alloy, Nickel-Plated | Sealing: | - |
| Shielding: | Shield | Overmolding: | - |
| Wires & Cables Conductor: | - | Wires & Cables Jacket: | - |
| Technical Characteristics | |||
| Rated Current: | 1.5A | Rated Voltage: | 125V |
| Rated Temperature: | -40°C ~ + 85°C | Flame Retardant Grade: | UL94V-0 |
| Insulation Resistance: | ≥ 500 MΩ | Contact Resistance: | ≤ 20m Ω |
| Durability: | ≥ 1000 Times | Protection Grade: | - |
| Product Certification: | RoHS, REACH | Production Design Standards: | IEC 60603-7 / TIA/EIA-568 |
